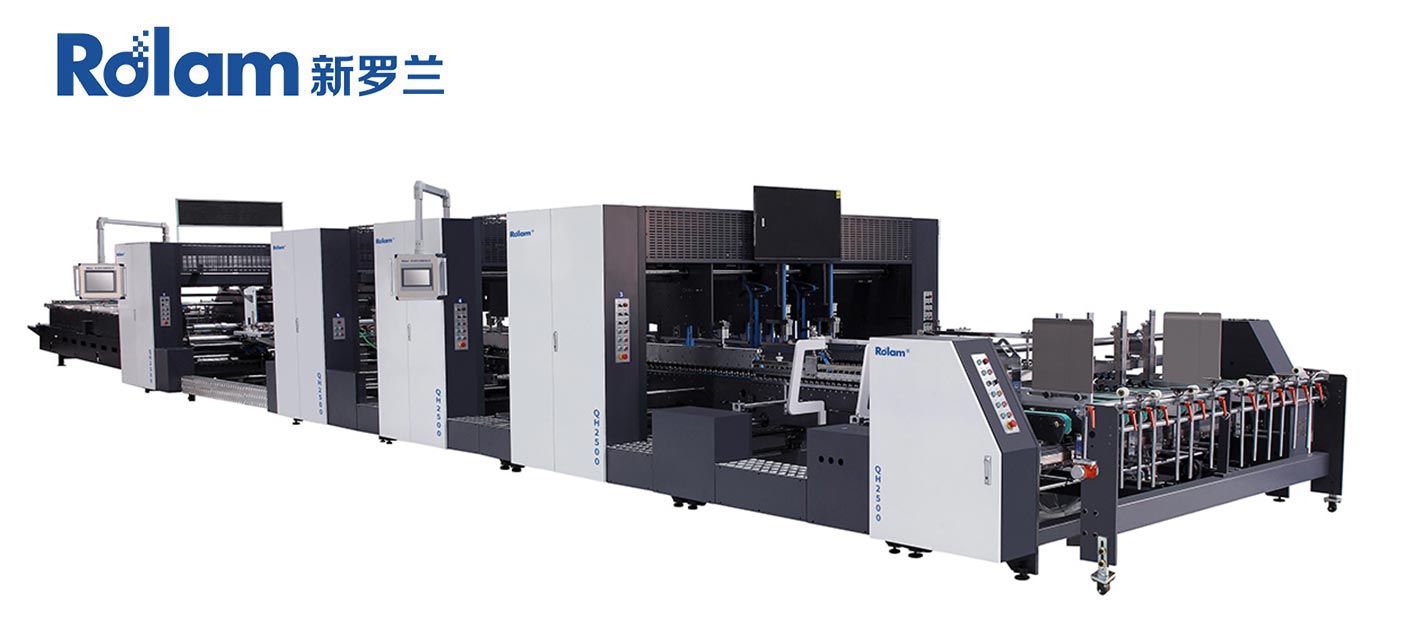

Plegadora-encoladora de alta resistencia serie QH

Descripción de producción de XL

The QH series fully automatic heavy-duty corrugated box folder gluer machine is suitable for folding and forming 4/6 corner, lock bottom, and single-line corrugated boxes.

Parámetros técnicos de QH

Model	1700	2100	2500
Paper material	Cardboard 210-800gsm，A/B/E Flute
Max. speed	280m/min
Max. thickness of folded box	12mm
Way of folding	Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	1700mm	2100mm	2500mm

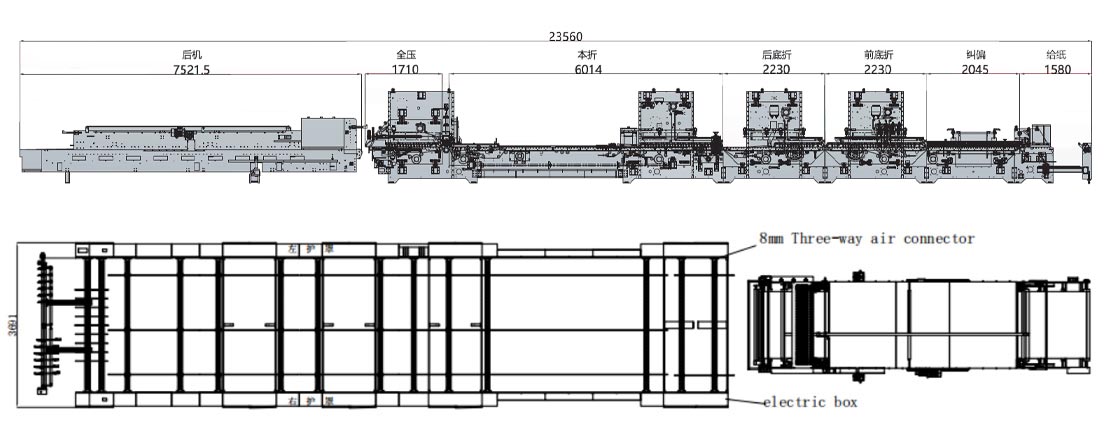

Length x Width x Height	24x2.9x2.05m	24x3.3x2.05m	24x3.7x2.05m
Net Weight	14.5T	15.5T	18T
Total power	60kw	60kw	60kw

Función de plegadora y encoladora de alta resistencia de la serie QH

• Apply to corrugated cardboard paper box.

• Strong stainless steel frame ensures the machine runs stably at high speed.

• Automatic fault diagnosis alarm function, Wireless remote control for easy user operation.

• Machine with PLC control, a photocell touch screen for adjusting the machine.

• Low-voltage electrical appliances, button switches, transmission parts, timing belts, press belts, bearings, servo motors, inverters, pneumatic components, etc., are all imported products that meet European and American national safety standards

• Side touch screen displays the machine's speed, output, fault alarm, touch screen controls the machine's start/stop, paper feeding clutch, box receiving part's start/stop, parameter setting, and other operations.

Introducción a las características

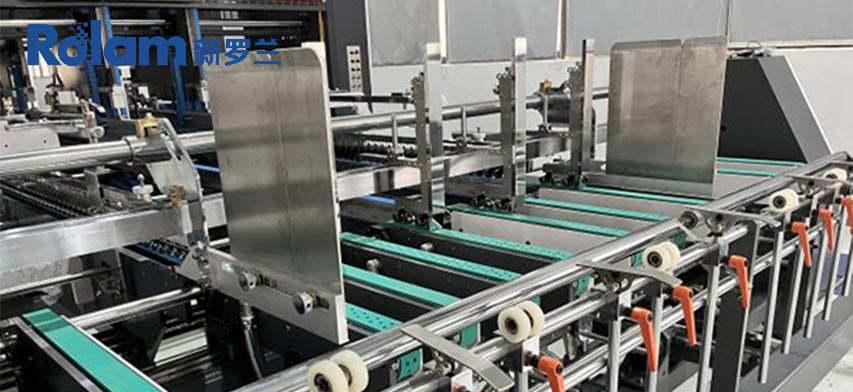

Paper Feeding Section

1. Equipped with an air suction function

2. Multi-stage rail to ensure the verticality of the pressing board.
To ensure that the paper feeding is not skewed,

3. The unique structure keeps a simpler and more convenient
adjustment of the pressing board. Push structure makes
supporting the cardboard adjustment more convenient and stable.

4. The baffles on the left and right can be adjusted up and
down to shorten the adjusting and carton changing time.

5. The vibration device coordinates with the motor,
which helps the machine feed consecutively and
automatically, quickly and simply.

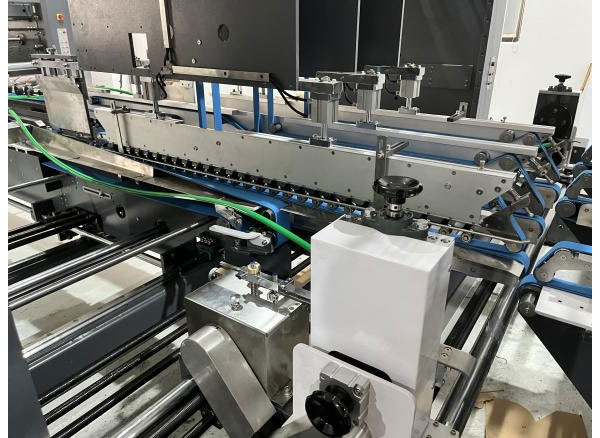

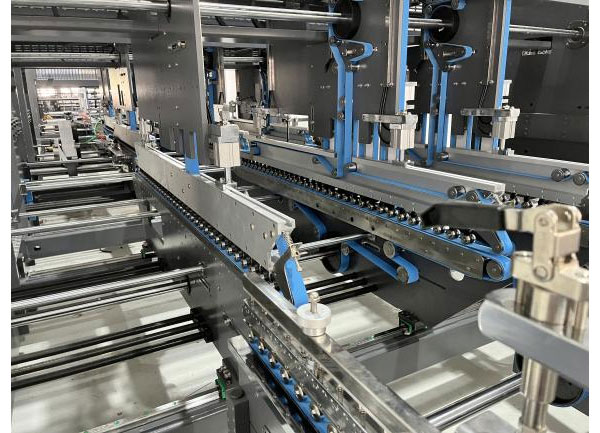

Crash Lock Bottom Section

Servo motor control, the entire front bottom locking
device ensures accurate bottom locking action.
The adjustable bottom hook device makes it difficult
to cut the flower box, and the operation control is
simple and fast. The front bottom fold adds a secondary
creasing function to correct the indentation line existing
in the corrugated box itself and enhance the smoothness
of large corrugated paper output.

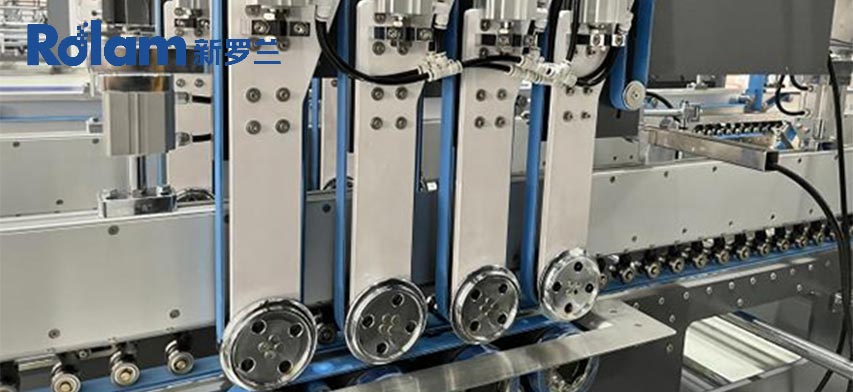

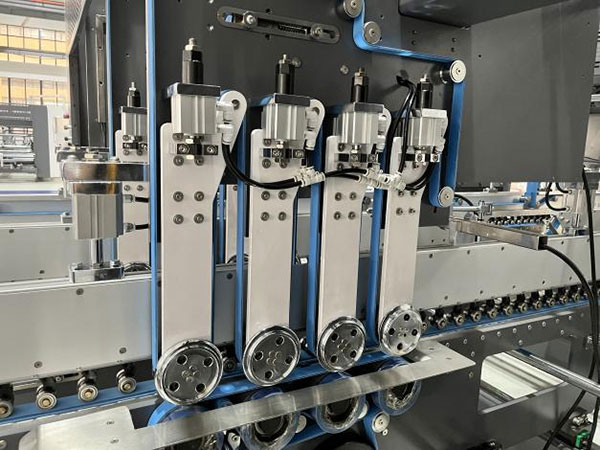

Accessories

The crimping line has high positioning accuracy,
which can flatten and shape the cardboard to
varying degrees, improve the accuracy of the
cardboard into cartons, and can provide standardized
and continuous paper feeding. It is easy to operate,
saves time and effort, and improves production efficiency.

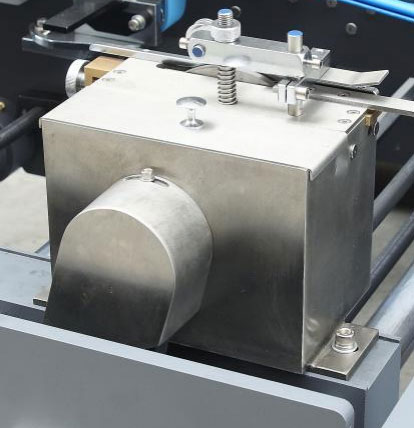

Lower Gluing Tank

1. The lower gluing tank is large volume.

2. Easy to remove and clean

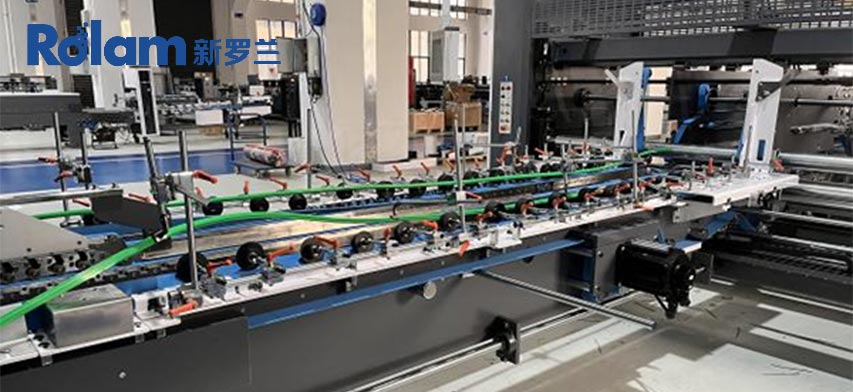

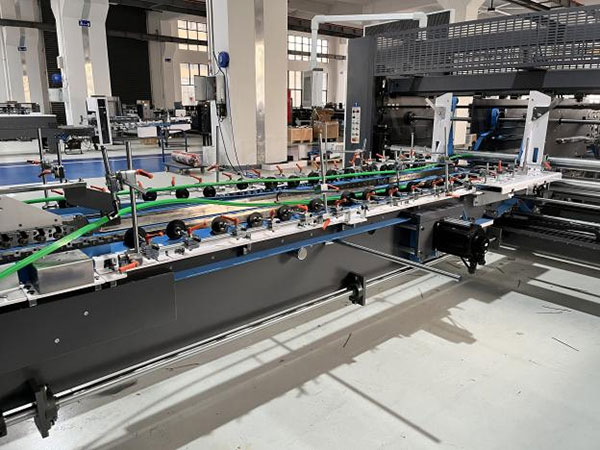

Folding and Closing

1. Equipped with a 3-plate type rail device.

2. The upper pressure belt adopts the main drive and
cylinder pressure more suitable for different thickness
corrugated products.

3. Folding section with servo motors, which can
adjust the folding section belts' speed separately.

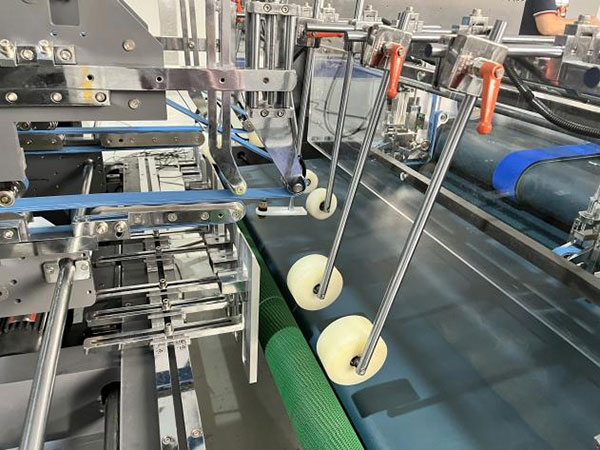

Trombone Section

1. An independent motor drive can be used to
control the adjustable size of the belt.

2. Paper collection adopts a cylinder pressure system,
easier to adjust pressure, making the box more
effectively glued.

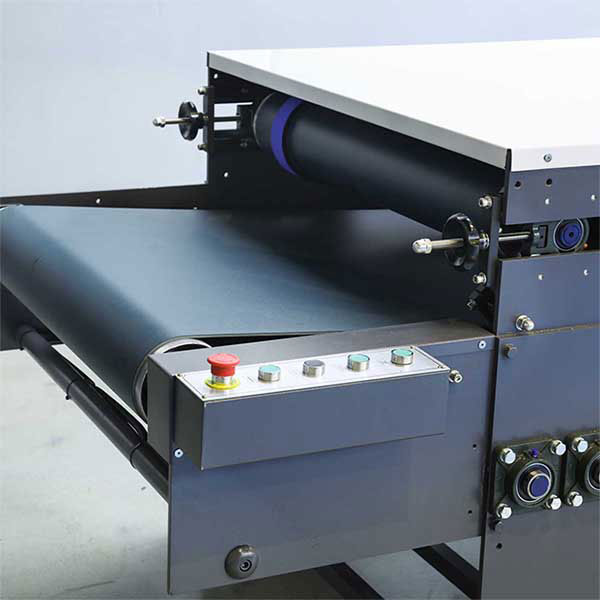

Transmission

1. The pressing and Transmission unit has a regulator,
a patting device, which can effectively avoid the
"scissors mouth" phenomenon of corrugated products.

2. The pressing and Transmission unit adopts a waiting function.
When the feeding section is in the pause status,
it will automatically enable the waiting function.
If has error in the paper collection unit,
it will automatically stop the machine work.

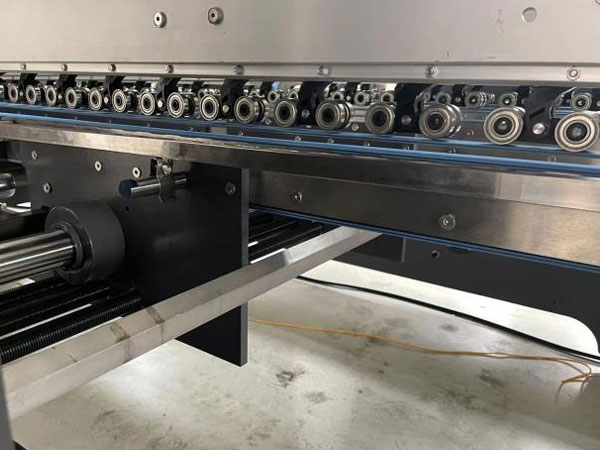

4/6-Corner Device

Motorized and untimed electronic back-folding system
with intelligent servo motor technology

QH Series Heavy Duty Folder Gluer Sample box parameters

Parámetros de muestra

Straight Line Box Way of folding Carton type and size:
Model	1700Type	2100Type	2500Type
A+B+C+D+E	520-1700	520-2100	520-2500
E(Min)	30	30	30
E(Max)	500	500	500
F	300-1400	300-1400	300-1400
G(Max)	1600	1600	1600

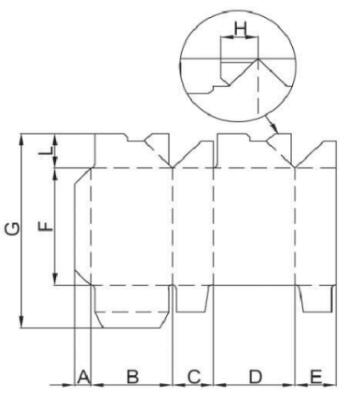

Crash Lock Bottom Box Way of folding Carton type and size:
Model	1700Type	2100Type	2500Type
B+C+D+E	500-1600	500-2000	500-2400
E(Min)	30	30	30
E(Max)	500	500	500
F	300-1400	300-1400	300-1400
G(Max)	1600	1600	1600
H(Min)	45	45	45
L	40-150	40-150	40-150
4 Corners Box Way of folding
Model	1700Type	2100Type	2500Type
A+B+C	340-1600	340-2000	340-2400
B	300-1600	300-1600	300-1600
F	300-1400	300-1400	300-1400
G(max)	1600	1600	1600
H(min)	45	45	45
L	40-150	40-150	40-150

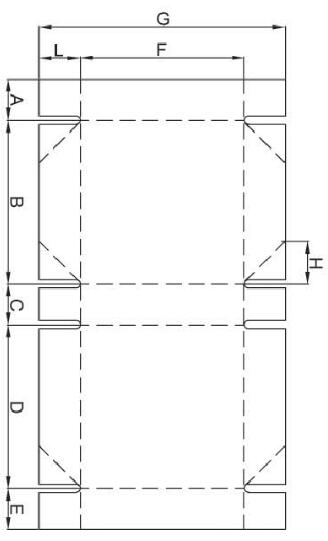

6 Corners Box Way of folding
Model	1700Type	2100Type	2500Type
A+B+C+D+E	500-1600	500-2000	500-2400
B(min)	220	220	220
C(min)	45	45	45
F	300-1400	300-1400	300-1400
G(max)	1600	1600	1600
H(min)	45	45	45
L	40-150	40-150	40-150
